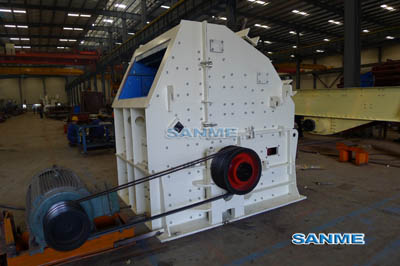

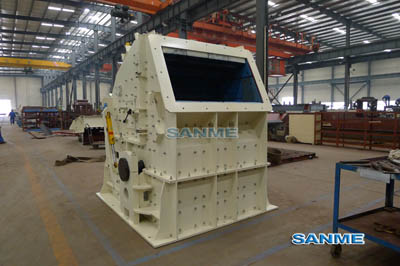

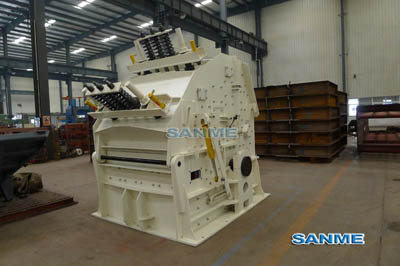

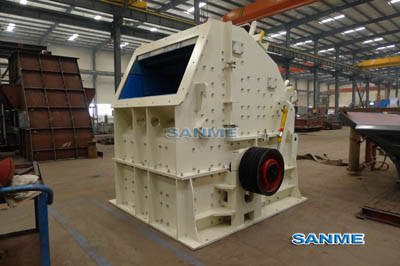

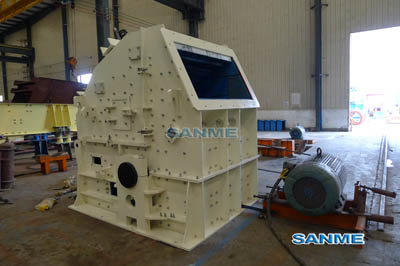

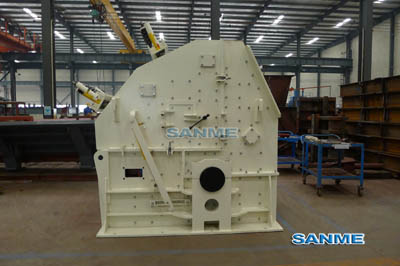

HC Series Impact Crusher

HC Series Impact Crusher is built on advanced technology with a combination of domestic applications. The overall structure is simple, practical and reasonable. The production is improved with bigger cavity in the same condition.



Download Product Document

HC Series Impact Crushers HC Series Impact Crushers HC Series Impact Crushers HC Series Impact Crushers HC Series Impact Crushers HC Series Impact Crushers

HC Series Impact Crusher Products Information

Products features and technology advantages:

1. High-quality plates and wear parts to reduce abrade and improve the production efficiency of various conditions; advanced processing technology is the basis of equipment performance.
2. Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.
3. Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.
4. Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor has a smoothly running and long working life.
5.Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.
6.Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.
7.Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.
8.Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.
9.Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.
10.Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost

Product Usage:

HC Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical industries, etc.

Main Technical Data:

Model Discharge Range(mm) Max Feed Size(mm) Capacity(t/h) Motor Power(kw) Overall Dimension(L×W×H)(mm)
{Dimension in the bracket with Grinding Chamber}
Weight(Motor not included)(t)
HC128(A) 780*630 300 50-130 55-90 2890(3058)*1748*2932 10.8
HC139(A) 1100*630 400 130-210 90-132 2890(3058)*2048*2932 13.6
HC239(A) 1100*740 500 180-280 110-160 2926(3095)*2048*2864 14.7
HC255(A) 1450*760 500 200-300 160-200 2893(3095)*2398*2970 17.4
HC359(A) 1550*1070 700 220-330 200-250 3700*3025*3240 25.7
HC459(A) 1550*1130 750 300-460 250-315 3750(3754)*3022*3330 27.1
HC579(A) 2050*830 800 320-490 400-440 3582*3561*3266 36.3
HC679(A) 2050*1230 1100 480-750 400-440 3900*3600*3500 50.5
HC779(A) 2050*1670 1500 500-850 630 4770*4338*4849 78.9
HC887(A) 2540*1845 1600 800-1200 1000 5355*5399*5454 111.5
